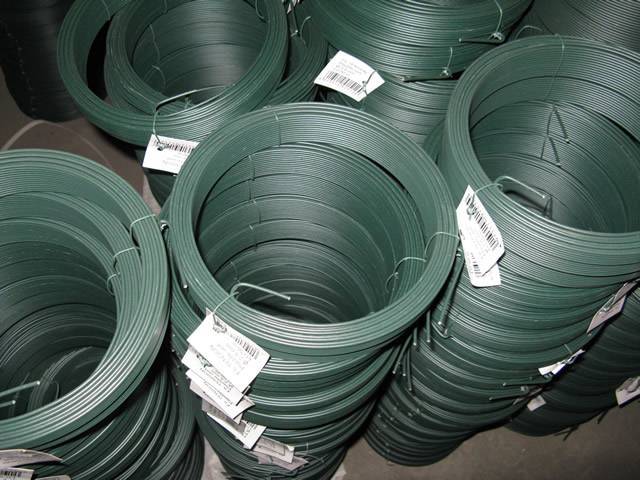

PVC Wire in straight wire, double loop wire ties and coils

PVC Wire With galvanized iron wire as material, PVC coated wire offers excellent corrosion resistance and longer service life compared with common galvanized wire. It is ideal for the protection of coastal areas and plant and animal facilities with an aggressive environment. Under these conditions, galvanized mesh netting will last a long time, since Zinc is not resistant to salty air. But the PVC coating cope with this factor. But Price of PVC coating is slightly higher than the price of galvanized wire.

PVC wire can withstand extreme temperature, in addition, the PVC coating does not fade when exposed to sunlight. The thickness of the PVC coating on the wire is not less than 0.25 mm (if the wire diameter of 2 mm inclusive) and not less than 0.35 mm (if the wire diameter is greater than 2 mm).

PVC Wire Specification 1:

• Materials: Electro Galvanized or Hot dipped galvanized wire, black iron wire.
• Diameter: 2.0 mm, 1.4 mm, 1.6 mm and so on.
• Tensile strength: 3565 kg/mm².
• Color: Green, blue, red, yellow, orange, gray color, and so on.
• Packing: Lined with PVC strips and wrapped with PVC or hessian cloth.

PVC coated wire specification 2:

• Application: Tarpaulin frame reinforcement.
• Diameter: Before coating 3.0 mm / After coating 5.0 mm.
• PVC coating: 2.0 mm.
• Color: Dark green.
• Tension Strength: Min. 1960 N/mm².
• Packing: coils of 27 kg (500 m) and coils of 2.7 kg (50 m).

Three PVC coated Gal binding wire new size and packing:

• Inner Diameter: 1.4 mm.
• Outer Diameter: 2 mm.
• Weight: 10 kg/Roll.
• Color: Dark Green.
• Packing: Each roll wrapped in poly thin sheet & then in gunny cloth.

• Inner Diameter: 1.5 mm.
• Outer Diameter: 2 mm.
• Weight: 15 kg/Roll.
• Color: Green.
• Packing: Each roll wrapped in poly thin sheet & then in gunny cloth.

• Inner Diameter: 1.7 mm.
• Outer Diameter: 2.3 mm.
• Weight: 18 kg/Roll.
• Color: Green.
• Packing: Each roll wrapped in poly thin sheet & then in gunny cloth.

Application:

1. PVC Coated Wire Can be made to binding wire, U type wire, straight & cut wire and double loop wire ties.
2. The most popular use for binding wire and PVC coated wire is in the Infrastructure, construction of chain link fences for industrial security fences, freeways and tennis courts.
3. PVC Coated Binding Wire is popularly used in the daily life and various industries. PVC binding wire has excellent corrosion resistance and smooth surface quality for electric supply.
